Defender Ballistic Protection

A Modular System to Protect Against Small Caliber Projectiles

The Defender Ballistic Protection system provides safety and protection, for both personnel and equipment, against fire from small arms and light weapons. The system provides protection against penetration by and spalling from 5.56mm up to 12.7mm rounds.

Defender Ballistic Protection

The main characteristic of the Defender Ballistic Protection system is its versatility, derived from its specific method of construction, which enables the use of different components to optimize its stopping capacity in relation to the level of expected threat.

The Defender Blast Protection system is based on the Defender system of lightweight building panels which can be quickly deployed in the form of prefabricated units or as external cladding for an existing structure. The panels offer a high level of flexibility, being able to provide both blast and ballistic protection as well as fire protection and thermal and acoustic insulation. The outer layers can be provided with a variety of textures to help them blend into their surroundings or to create a more natural and pleasing appearance.

Pelta Protections Systems is a joint venture between Ingegneria Dei Sistemi S.p.A. (IDS), which has over 30 years’ experience of producing electromagnetic engineering solutions and services for both civil and defense applications, and Acell Industries Ltd. which has produced fire resistant foams and composite panels for building applications for over 25 years.

Pelta Protection Systems Logo

Applications

FOB Protection
Protection of military forward operating bases as well as other military bases and airfields
Power Infrastructure
Protection of oil, gas and electricity installations from attack or internal explosions
Crowd Protection
Crowd protection at events that could be subject to attack
Government Building
Protection for government and public buildings such as embassies, ministries and corporate offices
Airport Protection
Protection against explosions at airports, either due to accidents or terrorist attack

Defender Ballistic Protection - Main Benefits

Modular nature allows them to be easily dismantled, stored and re-used multiple times

Lightweight and easily transportable

Recoverable at the end of the mission, re-usable and free of maintenance requirements

Can be deployed in a short time by unqualified personnel and repaired in the field

Download the brochure

Defender Ballistic Protection  – TECHNICAL SHEET

  •  Can be used or stored in the harshest of field conditions and the most inclement of weather
  • High level of flexibility with the ability to incorporate additional layers such as RFID systems, acoustic sensors and antennas
  • A wide range of finishes allow the system to be integrated in the surrounding environment
Fire Resistance –  Foam Panel density 150 kg/m3 – Thickness 60mm
Minutes exposed to fire
Temperature of the face exposed to the fire
Temperature of the unexposed face
30 850 C° 40 C°
60 950 C° 80 C°
90 1000 C° 85 C°
Sound Resistance
Characteristics
Method
Value
Acoustic Property (40mm foam) Rw ISO 140-3 52.0 dB
Sound absorption coefficient at 100Hz ISO 140-3 26.7 dB
Sound absorption coefficient at 500Hz ISO 140-3 50.9 dB
Sound absorption coefficient at 800Hz ISO 140-3 55.0 dB

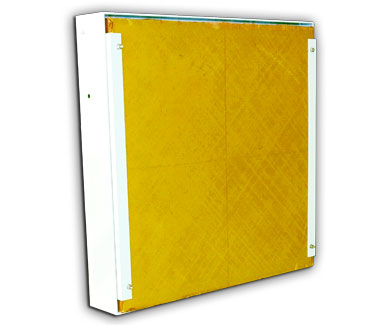

The Defender Ballistict Protection is made of Defender Panels.

Defender is a system of lightweight building panels which can be quickly deployed in the form of prefabricated units or as external cladding for an existing structure. Their modular nature allows them to be easily dismantled, stored and re-used multiple times.

Foam Density - type1
Foam density - type2
Foam Density - type 3
Characteristics
Values
Variable density from 80 – 800 kg/m3
Air or water permeability 132 Mph wind
Wind loading 204 Mph wind
Acoustic absorption 52 dB
Insulation U= 0,25 W/m2
